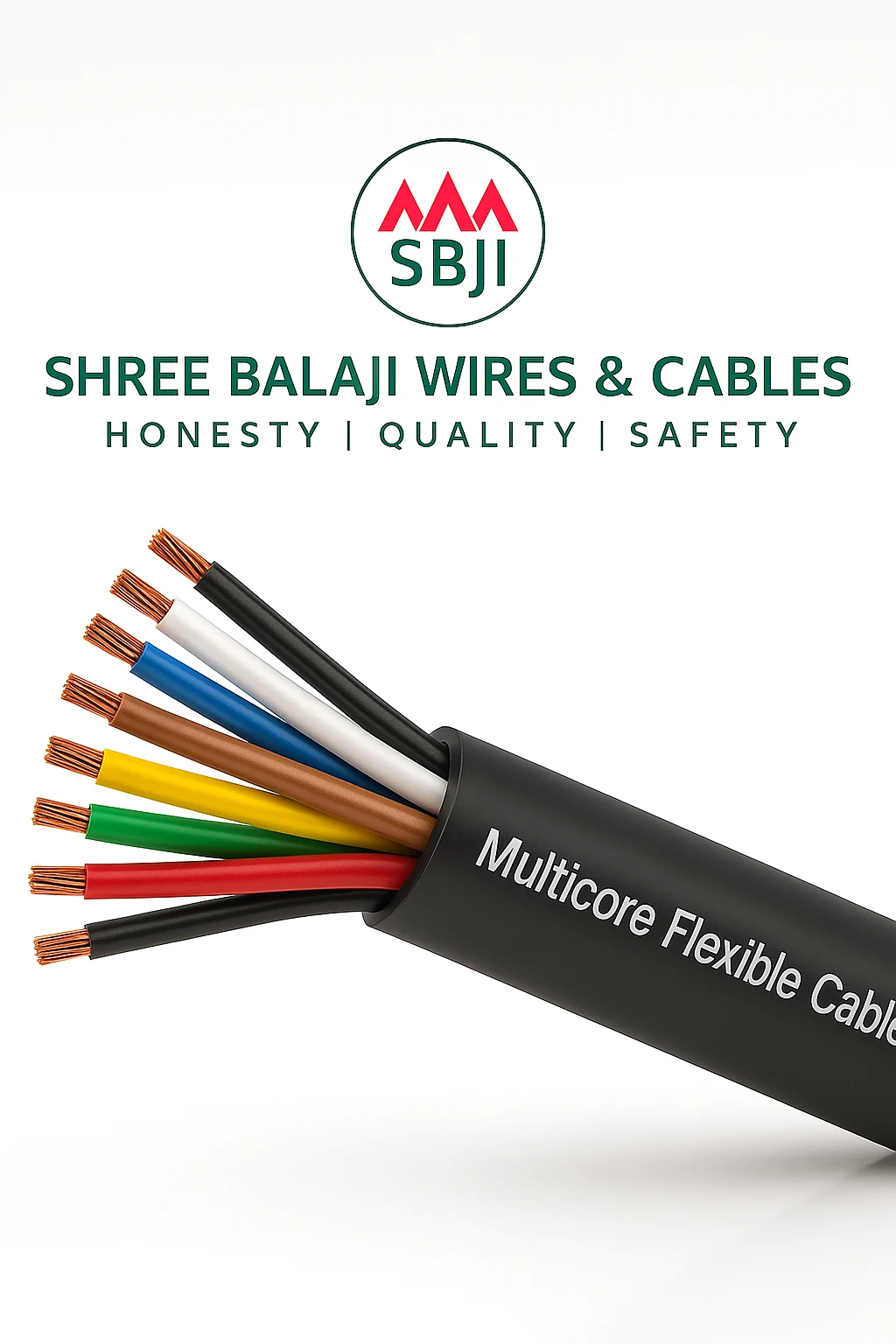

Multicore flexible cable

Multicore flexible cables contain multiple insulated conductors laid up together within a common sheath. They provide high flexibility and are used where multiple circuits must be carried in one cable.

Construction

Several tinned copper conductors stranded for flexibility; each core insulated with PVC; an intermediate layer (polyester tape or tinned copper braid) may provide screening; overall PVC sheath for mechanical protection.

Cable standards

Manufactured under IEC 60227 or IEC 60245 for multicore flexible cables; national standards such as IS 694 apply to domestic versions.

Technical specification

Rated voltage 300/500 V or 450/750 V; operating temperature range –20 °C to +70 °C/90 °C; available in 2–61 cores with conductor sizes 0.5–10 mm²; optional shielding for electromagnetic protection.

Characteristics

High flexibility; good insulation to high temperatures; flame‑retardant compounds available; resistant to oil, moisture and abrasion; cores color‑coded for easy identification.

Applications

Power cords for home appliances (heaters, ovens, air conditioners), portable equipment, control circuits and instrumentation systems where multiple conductors are needed in a single cable.

Size / Area in Sq.mm.	No. & size of wire	Nominal Insulation thickness (mm)	Overall core Diameter (mm)	Sheath thickness (mm)	Sheath thickness (mm)	Sheath thickness (mm)	Overall diameter (mm)	Overall diameter (mm)	Overall diameter (mm)	Max. resistance @20°C (ohm/km)	Current rating (Amp.)
Size / Area in Sq.mm.	No. & size of wire	Nominal Insulation thickness (mm)	Overall core Diameter (mm)	2 cores	3 cores	4 cores	2 cores	3 cores	4 cores	Max. resistance @20°C (ohm/km)	Current rating (Amp.)
0.5	16/0.20	0.6	2.2	0.9	0.9	0.9	6.2	6.6	7.2	39	4
0.75	24/0.20	0.6	2.5	0.9	0.9	0.9	6.8	7.2	7.9	26	7
1	32/0.20	0.6	2.6	0.9	0.9	0.9	7	7.5	8.1	19.5	11
1.5	48/0.20	0.6	2.9	0.9	0.9	1	7.6	8.1	9	13.3	14
2.5	80/0.20	0.7	3.5	1	1	1	9	9.6	10.5	7.98	19
4	56/0.30	0.8	4.3	1	1	1	10.6	11.3	12.4	4.95	25
6	84/0.30	0.8	5.5	1.3	1.3	1.4	13.7	14	16.5	3.3	32
10	140/0.30	1	6.7	1.4	1.4	1.4	16.5	18	19	1.91	45
16	224/0.30	1	8.4	1.4	1.4	1.4	19	20.5	23	1.21	60
