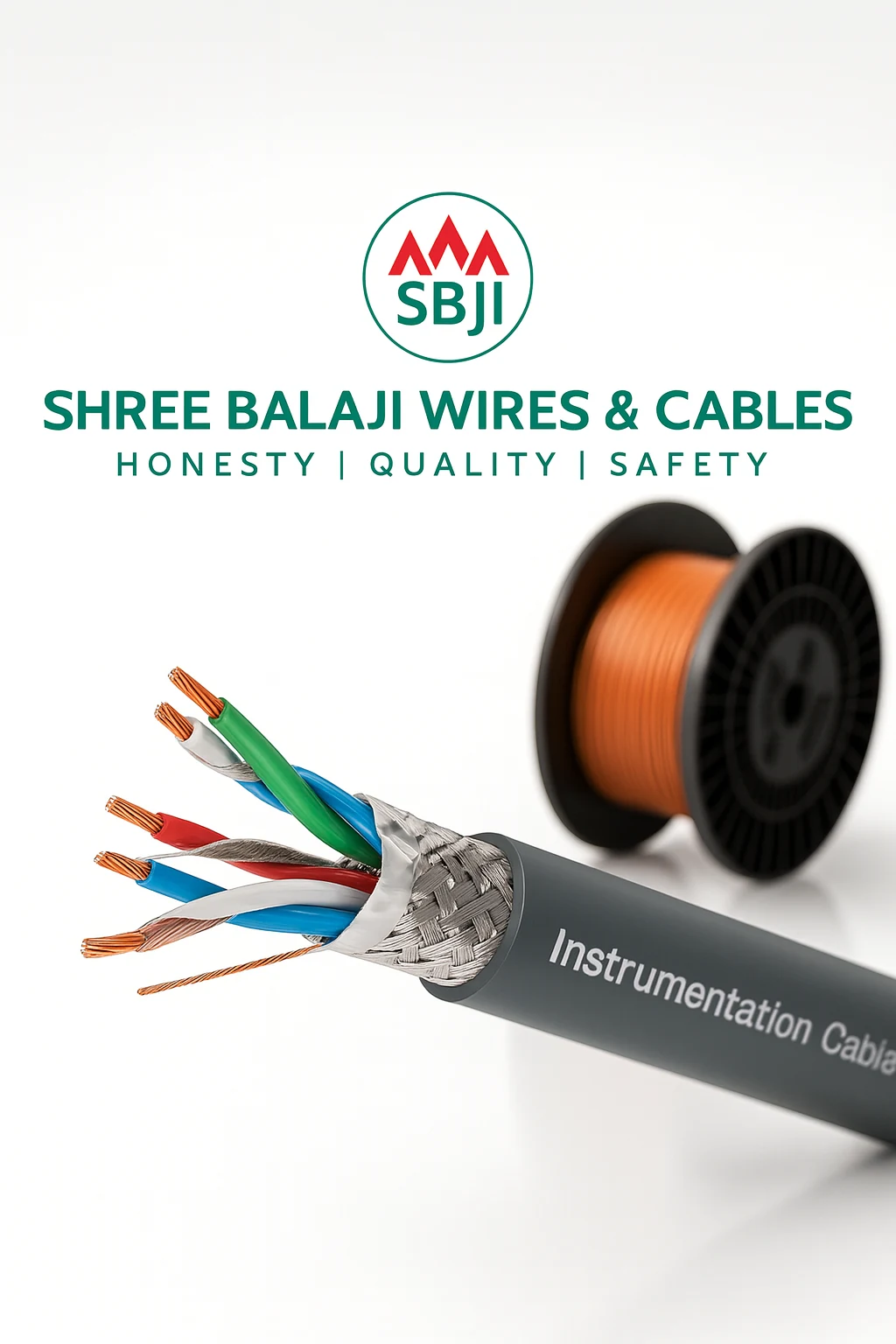

Instrumentation Cable
- Operating temperature: −5 °C to 70 °C
- Voltage grade: 350 / 500 / 600 V
- Conductor: 99.9% electrolytic copper (bare or tinned), Class 5 flexible
- Insulation & outer sheath: FR+HR PVC
- Separation: Aluminium Mylar® tape
- Shielding: optional tinned copper braid (coverage > 80%)
* Mylar® is a registered trademark of DuPont Teijin Films.
Salient Features
- Highly flexible data cable for low-frequency transmission applications.
- Excellent reliability with protection from external electromagnetic fields.
- Copper screen braiding coverage > 80% (when braided version selected).
- Overall Mylar® tape wrapping improves dielectric strength.
- Core identification by colour coding without repetition or numbered grey cores.
- Outer sheath of special FR+HR PVC compound.
- Standard packing: 100 m, 200 m, 500 m.
Cable Standards
- IS 694:2010
- BS 5308 Part 2 Type 1
- IEC 61156-1
- IS 14493 (Part 1):1997
- IS 5608 (Part 1):1991
Technical Data
| Operating temperature | −5 °C to 70 °C |
| Voltage grade | 350 / 500 / 600 V |
| Capacitance (1 kHz, core-to-core) | ≤ 200 pF/m |
| Capacitance (1 kHz, core-to-screen) | ≤ 400 pF/m |
| Inductance | ≤ 1.25 mH/km |
| Shield (optional) | Aluminium Mylar® + tinned copper braid (>80% coverage) |
| Conductor | 99.9% pure ETP copper, bare or tinned, Class 5 |
| Insulation | FR+HR PVC compound |
| Outer sheath | FR+HR PVC compound |
Sizes & Approx. Overall Diameter (mm)
| Size (sq.mm) |
Stranding (No./mm) |
2C | 3C | 4C | 5C | 6C | 7C | 8C | 10C | 12C | 14C | 16C | 19C |
| 0.125 | 7/0.15 |
3.9 | 4.2 | 4.6 | 4.9 | 5.6 | 5.7 | 6.0 | 6.4 | 6.8 | 7.0 | 7.5 | 8.6 |
| 0.25 | 14/0.15 |
4.2 | 5.3 | 5.7 | 6.0 | 6.5 | 6.6 | 7.1 | 7.6 | 8.0 | 8.3 | 8.5 | 9.5 |
| 0.5 | 16/0.20 |
6.2 | 6.5 | 7.2 | 8.3 | 8.5 | 8.5 | 9.3 | 10.8 | 11.2 | 12.0 | 12.6 | 13.2 |
| 0.75 | 24/0.20 |
6.8 | 7.2 | 7.9 | 9.1 | 9.5 | 9.5 | 10.4 | 12.2 | 12.6 | 13.3 | 14.2 | 14.9 |
| 1 | 32/0.20 |
7.0 | 7.5 | 8.1 | 9.6 | 9.8 | 9.8 | 10.7 | 12.6 | 13.0 | 13.7 | 14.6 | 15.6 |
| 1.5 | 48/0.20 |
7.6 | 8.1 | 9.0 | 10.3 | 10.7 | 10.7 | 11.9 | 13.8 | 14.3 | 15.2 | 16.0 | 17.1 |
| 2.5 | 80/0.20 |
9.0 | 9.6 | 10.5 | 11.7 | 12.7 | 12.7 | 14.1 | 16.6 | 17.2 | 18.1 | 19.3 | 20.3 |
| 4 | 56/0.30 |
10.6 | 11.3 | 12.4 | 13.95 | 15.3 | 15.3 | 16.9 | 20.2 | 20.7 | 21.8 | 23.2 | 24.5 |
* Insulation thickness, sheath thickness and overall dimensions shown are nominal values. Conductor construction is designed to satisfy the resistance requirements of IS 8130:1984.
Applications
- Low-frequency data/signal transmission
- Sensors, electronic instruments, actuators & encoders
- PLC/DCS interconnections and measurement circuits
- Load cells and process instrumentation
Load Cell Cables — Construction
| Conductor | Electrolytic grade annealed tinned copper flexible |
| Insulation | HDPE/PVC |
| No. of cores | 4 or 6 cores |
| Shield | Tinned copper shield or Aluminium tape backed by Polyester tape with ATC drain wire |
| Sheath | 100% Virgin Orange/Grey PVC or TPR (oil & chemical resistant) |
Sensor Cables — Overview
Designed for sensors, electronic instruments, actuators and encoders; typical operating voltage < 50 V. High-flex conductors with PVC insulation for strength and flexibility. Cores available in colour-coded or numbered variants; multicore with or without shielding; jacket in FR PVC or TPR for oil/chemical resistance.
| Core options | 3 / 4 / 5 / 6 / 8 core |
| Conductor cross-section (mm²) | 0.14, 0.25, 0.50, 0.75 |
| Shield | Tinned copper shielded (optional) |
| Sheath | 100% Virgin Orange/Grey PVC or TPR (oil & chemical resistant) |
