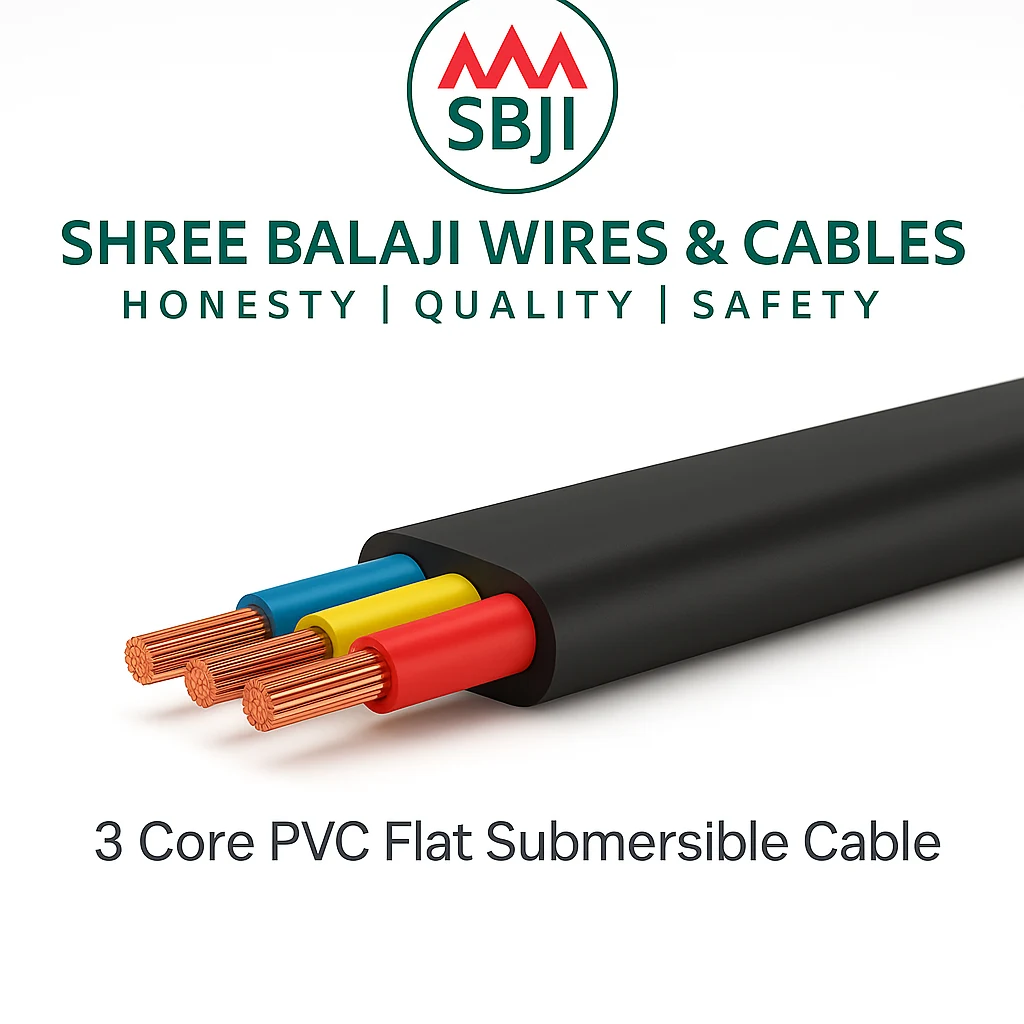

3 Core PVC Flat Submersible Cable

−10 °C to 70 °CVoltage: up to 1.1 kVCore colours: R/Y/BSheath: Black / Blue / GreyIS 694:2010 • BS 6500

Silent Features

High flexibility & durability ensures long life
Excellent resistance to moisture, abrasion, oil & grease
Excellent electrical & mechanical properties
Standard packing: 100 m, 200 m, 300 m, 500 m, 1000 m
Core colours as per IS 694:2010 — Red, Yellow, Blue
Available sheath colours: Black, Blue, Grey

Cable Standards

Conductor: 99.9% pure electrolytic flexible bare copper conductor as per IS 8130
Insulation: PVC Type A as per IS 5831
Outer sheath: PVC Type ST-1 as per IS 5831
Standards: IS 694:2010, BS 6500

Technical Data

Operating temperature: −10 °C to 70 °C
Voltage grade: up to 1.1 kV
Oxygen index to catch fire: > 29.5%
Ignition temperature at 21% O₂: > 250 °C
Visibility during cable burning: < 30%

Sizes & Construction

Size (sq.mm)	No. & size of wire	Nominal insulation thickness (mm)	Overall core diameter (mm)	Sheath thickness (mm)	Overall size (W × T) (mm)	Max. resistance @20°C (Ω/km)	Current rating (A)
1.5	22/0.30	0.6	3	0.9	11.5 × 5.5	12.1	14
2.5	36/0.30	0.7	3.6	1.0	14.0 × 6.4	7.41	18
4	56/0.30	0.8	4.5	1.1	16.5 × 7.2	4.61	25
6	84/0.30	1.0	5.2	1.15	18.2 × 8.0	3.08	32
10	140/0.30	1.0	6.5	1.3	23.0 × 9.8	1.83	45
16	226/0.30	1.0	7.8	1.4	27.5 × 11.2	1.15	57
25	354/0.30	1.2	9.5	2.0	34.5 × 14.0	0.727	72
35	495/0.30	1.4	11.2	2.0	40.0 × 17.0	0.524	90
50	703/0.30	1.4	12.5	2.1	45.5 × 18.5	0.386	110

Note: Insulation thickness, sheath thickness and overall dimensions are nominal. Conductor construction satisfies IS 8130:1984. Conforms to IS 694:2010.

Cable Selection Guide — DOL Starter (415 V, 40 °C)

Length (m)	5	7.5	10	12.5	15	17.5	20	25	30	35	40	45	50	55	60	65	70	75	80
30	1.5	1.5	2.5	2.5	4	4	6	10	10	16	16	25	25	35	35	35	50	50	50
40	1.5	1.5	2.5	2.5	4	4	6	10	10	16	16	25	25	35	35	35	50	50	50
50	1.5	1.5	2.5	2.5	4	4	6	10	10	16	16	25	25	35	35	35	50	50	50
60	1.5	1.5	2.5	2.5	4	4	6	10	10	16	16	25	25	35	35	35	50	50	50
70	1.5	2.5	2.5	4	4	4	6	10	10	16	16	25	25	35	35	35	50	50	50
80	1.5	2.5	2.5	4	4	6	6	10	10	16	16	25	25	35	35	35	50	50	50
90	1.5	2.5	4	4	4	6	6	10	10	16	16	25	25	35	35	35	50	50	50
100	1.5	2.5	4	4	6	6	6	10	10	16	16	25	25	35	35	35	50	50	50
120	2.5	4	4	6	6	10	10	10	16	16	16	25	25	35	35	35	50	50	50
140	4	4	6	10	10	10	10	16	16	25	25	25	25	35	35	35	50	50	50
160	4	4	6	10	10	10	10	16	16	25	25	25	25	35	35	35	50	50	50
180	4	6	6	10	10	10	16	16	16	25	25	25	35	35	35	35	50	50	50

Cable Selection Guide — Star‑Delta Starter (415 V, 40 °C)

Length (m)	5	7.5	10	12.5	15	17.5	20	25	30	35	40	45	50	55	60	65	70	75	80
30	1.5	1.5	1.5	2.5	2.5	2.5	2.5	4	4	6	10	10	10	10	16	16	16	16	25
40	1.5	1.5	1.5	2.5	2.5	2.5	2.5	4	4	6	10	10	10	10	16	16	16	16	25
50	1.5	1.5	1.5	2.5	2.5	2.5	2.5	4	4	6	10	10	10	10	16	16	16	16	25
60	1.5	1.5	2.5	2.5	2.5	2.5	4	4	4	6	10	10	10	10	16	16	16	16	25
70	1.5	1.5	2.5	2.5	2.5	2.5	4	4	6	6	10	10	10	10	16	16	16	16	25
80	1.5	1.5	2.5	2.5	4	4	4	4	6	6	10	10	10	10	16	16	16	16	25
90	1.5	1.5	2.5	4	4	4	4	6	6	6	10	10	10	10	16	16	16	16	25
100	1.5	1.5	4	6	4	4	6	6	10	10	10	10	10	10	16	16	16	16	25
120	1.5	2.5	4	6	4	6	6	10	10	10	10	16	16	16	16	25	25	25	25
140	2.5	4	6	6	6	6	10	10	10	16	16	16	16	16	25	25	25	25	25
160	2.5	4	6	6	6	6	10	10	10	16	16	16	16	16	25	25	25	25	25
180	2.5	4	6	6	6	10	10	16	16	16	16	16	25	25	25	25	35	35	35

Rating Factors

Supply voltage (V)	Rating factor
415	1
400	1.05
350	1.15
300	1.25
275	1.30
250	1.35

Ambient temperature (°C)	Rating factor
30	1.09
35	1.04
40	1.00
45	0.95
50	0.77
